Model |
Year |
MG |
SG |
Illustration |
Restrictions |
UPD |
|
PET |
|
928 |
1995 |
0 |
01 |
001-00 |
248 |
||||
|
|
![]() |
Pos |
Part Number |
Description |
Remark |
Qty |
Model |
|
|

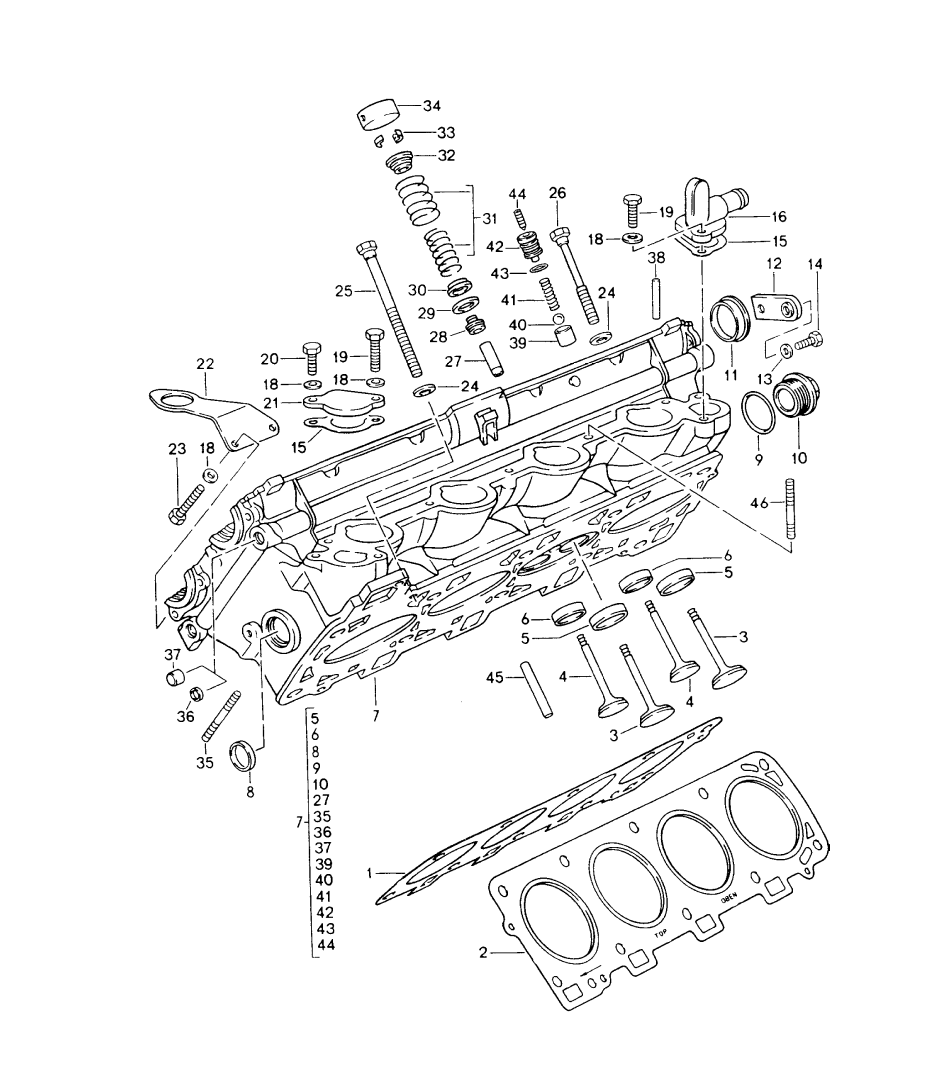

cylinder head |
|
|
m28.49/50 |
|
1 |
928 104 367 05 |
cylinder head gasket /R - cylinders 1 - 4 (without asbestos) |
/R |
1 |
|
|
1 |
928 104 367 11 |
cylinder head gasket /R - cylinders 1 - 4 (for recond . cylinder heads) |
/R |
1 |
|
|
2 |
928 104 368 05 |
cylinder head gasket /L - cylinders 5 - 8 (without asbestos) |
/L |
1 |
|
|
2 |
928 104 368 11 |
cylinder head gasket /L - cylinders 5 - 8 (for recond. cylinder heads) |
/L |
1 |
|
|
3 |
928 105 641 05 |
intake valve |
|
16 |
|
|
4 |
928 105 642 06 |
exhaust valve |
|
16 |
|
|
5 |
928 104 611 12 |
valve seat ring (intake) |
|
16 |
|
|
5 |
928 104 611 15 |
valve seat ring (intake) |
|
16 |
|
|
6 |
928 104 612 14 |
valve seat ring (exhaust) |
|
16 |
|
|
6 |
928 104 612 14 |
valve seat ring (exhaust) |
|
16 |
|
|
7 |
> 928 104 014 06 |
cylinder head |
|
2 |
|
|
8 |
900 036 014 02 |
lid |
|
2 |
|
|
9 |
* N 043 811 1 |
sealing ring c (38*44) |
|
2 |
|
|
10 |
944 104 228 01 |
screw plug |
|
2 |
|
|
11 |
* 928 105 215 00 |
lid |
|
6 |
|
|
12 |
928 105 205 00 |
support |
|
6 |
|
|
13 |
N 011 524 7 |
washer (A6,4) |
|
6 |
|
|
14 |
900 075 016 02 |
hexagon-head bolt (M6*22) |
|
5 |
|
|
15 |
* 928 106 167 01 |
gasket (without asbestos) |
|
2 |
|
|
16 |
928 104 713 02 |
adapter (cylinders 1 - 4) |
|
1 |
|
|
18 |
900 025 007 02 |
washer (A 8,4) |
|
8 |
|
|
19 |
N 010 242 12 |
hexagon-head bolt (M8*25) |
3 |
|||
20 |
900 075 079 02 |
hexagon-head bolt (M8*22) |
1 |
